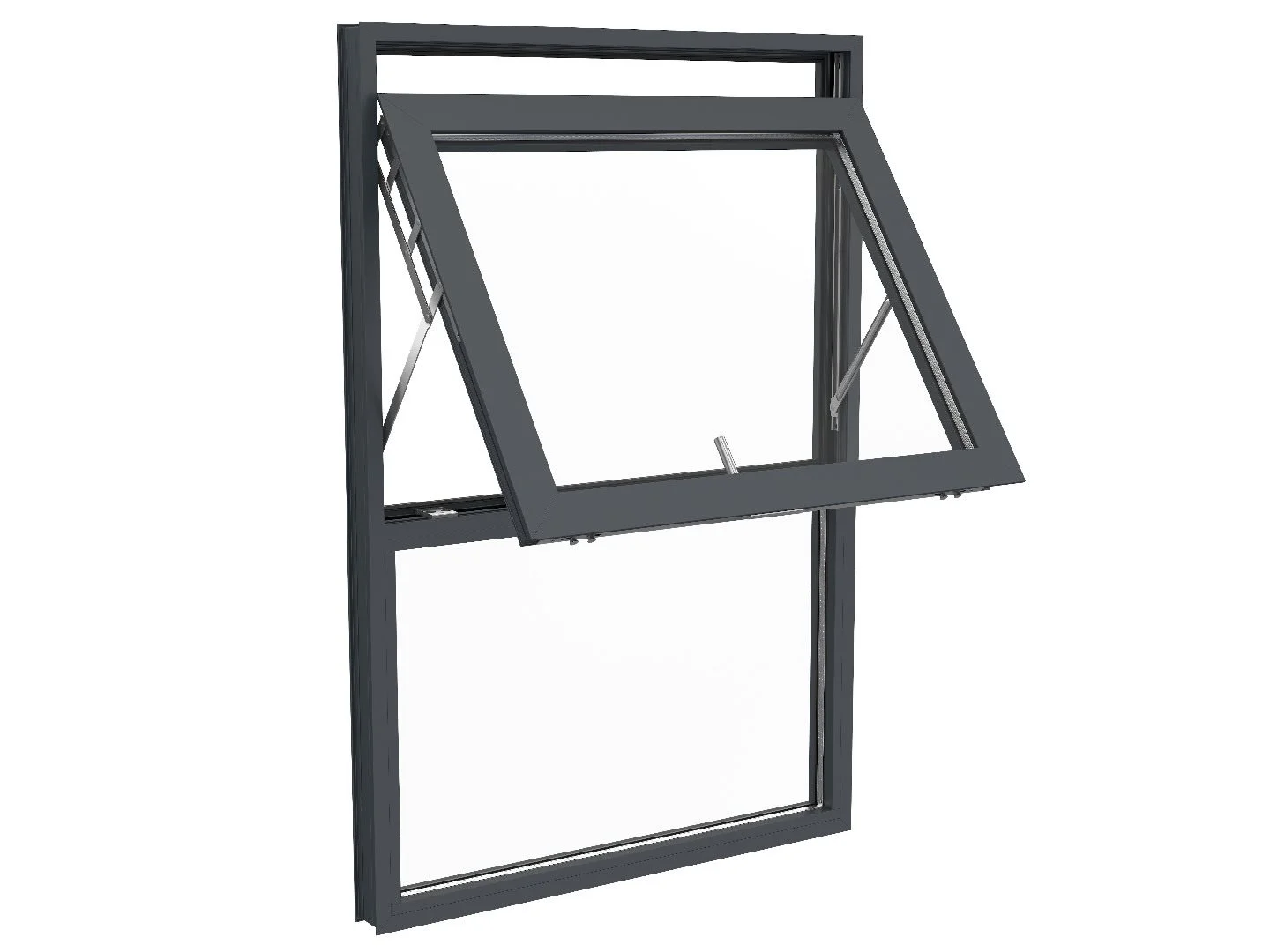

A Smart Systems Alitherm 400 aluminium window, top hung over a fixed light, open

Home/Windows/Alitherm 400

Smart Systems

Every opening, one system.
Alitherm 400

Alitherm 400 is Smart Systems' thermally broken window platform, and the one we hold most profile for. We fabricate it at Unit 7 in Marden to the sizes on your order, in whatever colour the job calls for.

1.4 W/m²KTypical U value
Band AWindow Energy Rating
70mmFrame depth
2100mmMax fixed pane

Made here, not bought in

We hold Alitherm 400 profile in the unit, cut it on our own saw, machine it on our own centre and build it on our own benches. No part of your order goes out to a third party and comes back late. If a size needs putting right, the saw that cut it is in the same room as the person fixing it.

Five ways it opens

Fixed, side hung, top hung, tilt and turn, and flush casement, all off one platform. That matters on a whole-house job: you can mix opening types across every elevation without mixing systems, so the sightlines stay consistent from the front bay to the back bedroom.

Where it suits

A thermally broken system for residential and light commercial work. New build houses and flats, refurbishments, schools and offices, and period properties where the look has to be sympathetic but the performance cannot be.

One thing worth knowing

Smart lists tilt and turn as TBA for PAS 24 and for the air, water and wind classes. That means untested at publication, not failed. The other three opening types carry PAS 24:2022. If the job is security rated, ring us and we will go through it rather than let you find out later.

Colour and finish

Powder coating in the standard and non-standard RAL and metallic ranges, plus the named ranges: Naturals, Sensations, Cotswold Creations and Alchemy. Dual colour is available, so the outside can answer to the street and the inside to the room.

Specification

The numbers, as published.

SYSTEM
Smart Systems Alitherm 400
OPENING TYPES
Fixed, side hung, top hung, tilt and turn, flush casement
FRAME DEPTH
70mm
U VALUE
1.4 W/m2K typical
WER
Band A
GLAZING
24, 28, 32, 36, 40 and 45mm units
MAX SIZE, SIDE HUNG
864mm wide by 1400mm high
MAX SIZE, TOP HUNG
1400mm wide by 1400mm high
MAX SIZE, FIXED
2100mm wide by 2100mm high
MAX SIZE, TILT AND TURN
1200mm wide by 2100mm high
SECURITY
PAS 24:2022 on fixed, side hung and top hung. Tilt and turn is listed as TBA
AIR PERMEABILITY
Class 4 on fixed, side hung and top hung
WATER TIGHTNESS
E1200 on fixed, side hung and top hung
WIND RESISTANCE
AE2400 on fixed, side hung and top hung
BUILDING REGULATIONS
Fully compliant with Part L
HARDWARE
Quantum range stainless steel, colour matched lever handles
FINISH
Standard and non-standard RAL and metallic, plus Naturals, Sensations, Cotswold Creations and Alchemy. Dual colour available
FABRICATED
Cut, machined and assembled at Unit 7, Marden, Kent
FIGURES
As published by Smart Systems. U value based on an opener next to fixed, 1230 x 1480, centre pane 1.0

Download the brochure

The Emmegi twin-head saw in the GXG Aluminium factory at Unit 7, Marden, KentEmmegi twin-head saw, Unit 7
Inside the factory

One building, from bar to finished frame.

The saw, the machining centre and the benches are all in the same unit in Marden. Nothing goes out to a third party and comes back late. If you want to see where your order is, you can stand next to it.

Where
Unit 7, Guardian Industrial Estate, Pattenden Lane, Marden, Kent
Cutting
Emmegi twin-head saw
Machining
CNC machining centre
Assembly
Built and glazed on the bench, in the same building
Profiles
Smart Systems
Supplied to
Twelve counties, Kent to Devon
Visitors
Welcome. Ring first and someone will walk you round
