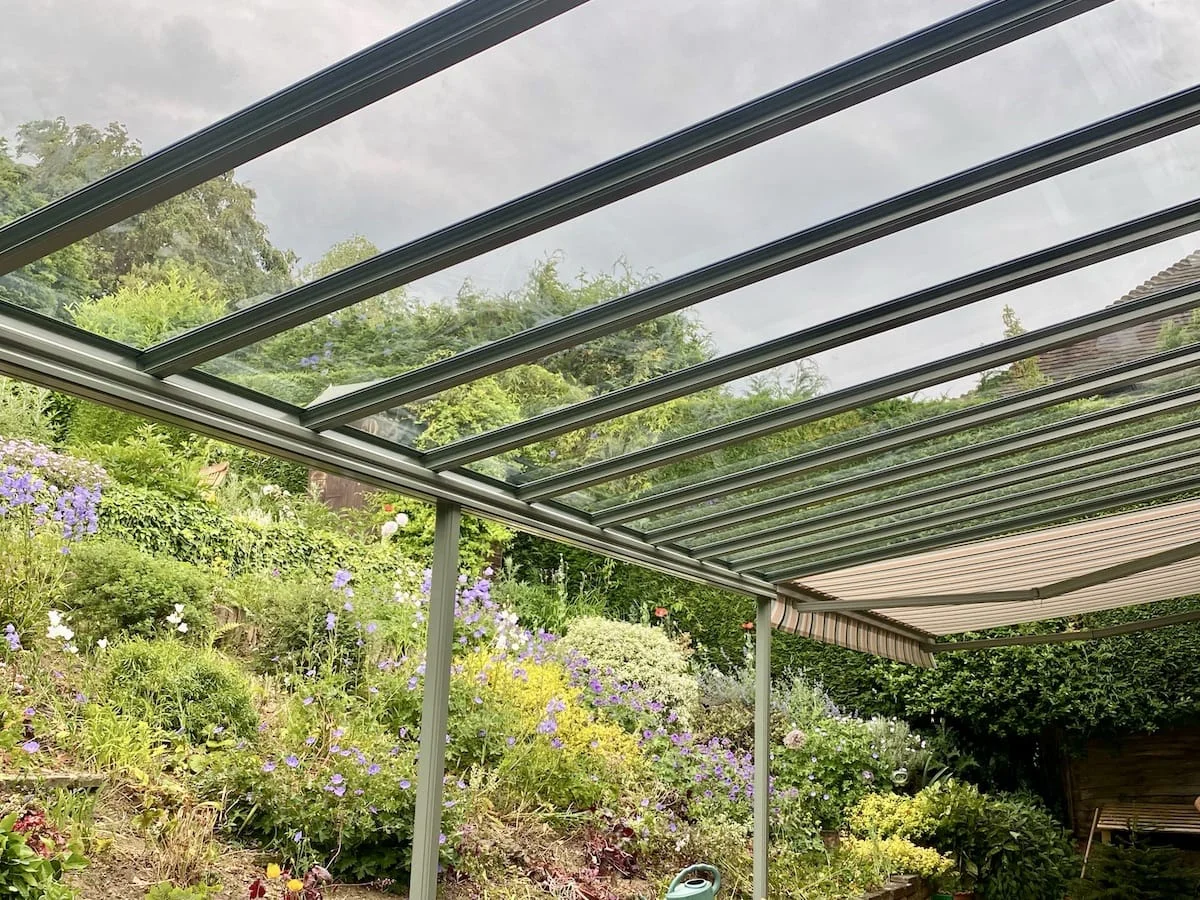

A Series 6 glass veranda fitted over a garden in Sevenoaks, Kent

Home/Verandas and canopies/Series 6 veranda

Series

Four metres between posts.
Series 6 veranda

Series 6 is the glass-roofed veranda: 6mm toughened glass, a projection of up to 3.5 metres and unlimited length, with 4 metres between posts so the view is not cut into sections. Ten year guarantee, sixty year life expectancy.

3.5mMax projection
4.0mMax post spacing
6mmToughened glass roof
10 yearsGuarantee

Glass, not polycarbonate

That is the whole difference between this and Series 16. Glass is clearer, quieter in rain and looks like part of the house. Polycarbonate is lighter, cheaper and spans further. If the veranda is going somewhere you will sit and look up, glass is worth the money.

Span before posts

Up to 4 metres between posts, and unlimited length. That matters more than projection on most jobs, because a post landing in the middle of a patio door is what ruins a veranda.

What it can become

The same system builds a veranda, a carport, a glass room, a commercial canopy, a walkway or an entrance canopy. Entrance canopies come with a traditional or contemporary gutter profile.

Options worth knowing about

LED strip lighting can go in the main bars as well as the gutter on this system, which is not true of all of them, and RGBW is available. Heaters, privacy screens, shading, glass room conversion and a Victorian upgrade are all available. Drainage runs internal, external or spigot only.

Glass options

Clear, grey, blue and bronze tinted, plus UV-active self-cleaning glass. Self-cleaning is the one to consider if the veranda is under trees or hard to reach.

Specification

The numbers, as published.

SYSTEM
Series 6
ROOF
6mm toughened glass
GLASS OPTIONS
Clear, grey, blue and bronze tinted, plus UV-active self-cleaning
MAX PROJECTION
3.5m
LENGTH
Unlimited
MAX SPAN BETWEEN POSTS
4.0m
MAX GAP BETWEEN ROOF BARS
800mm, varies by projection
PITCH
Minimum 2.5 degrees, maximum 22.5 degrees
GUARANTEE
10 year
LIFE EXPECTANCY
60 year minimum
DRAINAGE
Internal, external, or spigot only
LIGHTING
LED strip in main bars and gutter. RGBW available
UPGRADES
Glass room, RGBW lighting, heaters, Victorian upgrade, privacy screen, frames, glazing, shading, goal post, bespoke RAL
COLOURS
RAL 7016 Anthracite Grey Textured, RAL 9005 Jet Black Textured, RAL 9016 Traffic White Semi-Gloss
VARIANTS
Veranda, carport, glass room, commercial canopy, walkway, entrance canopy
The Emmegi twin-head saw in the GXG Aluminium factory at Unit 7, Marden, KentEmmegi twin-head saw, Unit 7
Inside the factory

One building, from bar to finished frame.

The saw, the machining centre and the benches are all in the same unit in Marden. Nothing goes out to a third party and comes back late. If you want to see where your order is, you can stand next to it.

Where
Unit 7, Guardian Industrial Estate, Pattenden Lane, Marden, Kent
Cutting
Emmegi twin-head saw
Machining
CNC machining centre
Assembly
Built and glazed on the bench, in the same building
Profiles
Smart Systems
Supplied to
Twelve counties, Kent to Devon
Visitors
Welcome. Ring first and someone will walk you round
Come and see it
Get a quote
